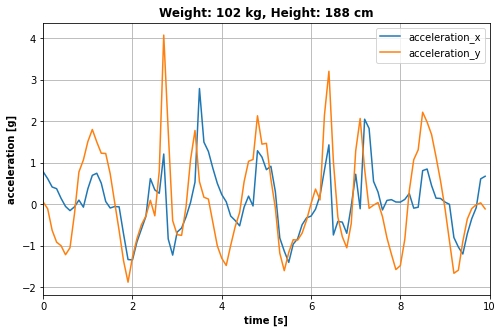

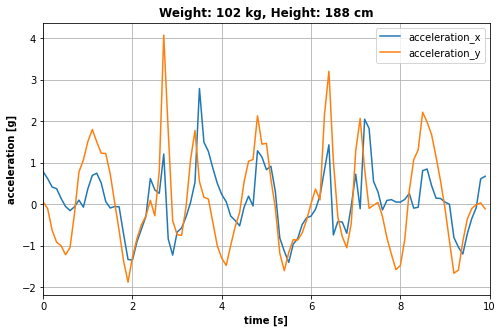

# Creating Time-Series Datasets ## How to use Deep Lake to store time-series data #### This tutorial is also available as a [Colab Notebook](https://colab.research.google.com/drive/1MX2PjzfPRXaxymWtGP81-81pm8E61sZQ?usp=sharing) Deep Lake is intuitive format for storing large time-series datasets and it offers compression for reducing storage costs. This tutorial demonstrates how to convert a time-series data to Deep Lake format and load the data for plotting. ### Create the Deep Lake Dataset The first step is to download the small dataset below called *sensor data.* {% file src="" %} This is a subset of a [dataset available on kaggle](https://www.kaggle.com/malekzadeh/motionsense-dataset), and it contains the iPhone x,y,z acceleration for 24 users (subjects) under conditions of walking and jogging. The dataset has the folder structure below. `subjects_info.csv` contains metadata such as `height`, `weight`, etc. for each subject, and the `sub_n.csv` files contains the time-series acceleration data for the `nth` subject. ```python data_dir |_subjects_into.csv |_motion_data |_walk |_sub_1.csv |_sub_2.csv ... ... |_jog |_sub_1.csv |_sub_2.csv ... ... ``` Now that you have the data, let's **create a Deep Lake Dataset** in the `./sensor_data_deeplake` folder by running: ```python import deeplake import pandas as pd import os from tqdm import tqdm import numpy as np import matplotlib.pyplot as plt ds = deeplake.empty('./sensor_data_deeplake') # Create the dataset locally ``` Next, let's specify the folder path containing the existing dataset, load the subjects metadata to a Pandas DataFrame, and create a list of all of the time-series files that should be converted to Deep Lake format. ```python dataset_path= './sensor_data' subjects_info = pd.read_csv(os.path.join(dataset_path, 'subjects_info.csv')) fns_series = [] for dirpath, dirnames, filenames in os.walk(os.path.join(dataset_path, 'motion_data')): for filename in filenames: fns_series .append(os.path.join(dirpath, filename)) ``` Next, let's create the `tensors` and add relevant metadata, such as the dataset source, the tensor units, and other information. We leverage `groups` to separate out the primary acceleration data from other user data such as the weight and height of the subjects. ```python with ds: #Update dataset metadata ds.info.update(source = 'https://www.kaggle.com/malekzadeh/motionsense-dataset', notes = 'This is a small subset of the data in the source link') #Create tensors. Setting chunk_compression is optional and it defaults to None ds.create_tensor('acceleration_x', chunk_compression = 'lz4') ds.create_tensor('acceleration_y', chunk_compression = 'lz4') # Save the sampling rate as tensor metadata. Alternatively, # you could also create a 'time' tensor. ds.acceleration_x.info.update(sampling_rate_s = 0.1) ds.acceleration_y.info.update(sampling_rate_s = 0.1) # Encode activity as text ds.create_tensor('activity', htype = 'text') # Encode 'activity' as numeric labels and convert to text via class_names # ds.create_tensor('activity', htype = 'class_label', class_names = ['xyz']) ds.create_group('subjects_info') ds.subjects_info.create_tensor('age') ds.subjects_info.create_tensor('weight') ds.subjects_info.create_tensor('height') # Save the units of weight as tensor metadata ds.subjects_info.weight.info.update(units = 'kg') ds.subjects_info.height.info.update(units = 'cm') ``` Finally, let's iterate through all the time-series data and upload it to the Deep Lake dataset. ```python with ds: # Iterate through the time series and append data for fn in tqdm(fns_series): # Read the data in the time series df_data = pd.read_csv(fn) # Parse the 'activity' from the file name activity = os.path.basename(os.path.dirname(fn)) # Parse the subject code from the filename and pull the subject info from 'subjects_info' subject_code = int(os.path.splitext(os.path.basename(fn))[0].split('_')[1]) subject_info = subjects_info[subjects_info['code']==subject_code] # Append data to tensors ds.activity.append(activity) ds.subjects_info.age.append(subject_info['age'].values) ds.subjects_info.weight.append(subject_info['weight'].values) ds.subjects_info.height.append(subject_info['height'].values) ds.acceleration_x.append(df_data['userAcceleration.x'].values) ds.acceleration_y.append(df_data['userAcceleration.y'].values) ``` ### Inspect the Deep Lake Dataset Let's check out the first sample from this dataset and plot the acceleration time-series. {% hint style="success" %} **It is noteworthy that the Deep Lake dataset takes 36% less memory than the original dataset due to `lz4` chunk compression for the acceleration tensors.** {% endhint %} ```python s_ind = 0 # Plot the first time series t_ind = 100 # Plot the first 100 indices in the time series #Plot the x acceleration x_data = ds.acceleration_x[s_ind].numpy()[:t_ind] sampling_rate_x = ds.acceleration_x.info.sampling_rate_s plt.plot(np.arange(0, x_data.size)*sampling_rate_x, x_data, label='acceleration_x') #Plot the y acceleration y_data = ds.acceleration_y[s_ind].numpy()[:t_ind] sampling_rate_y = ds.acceleration_y.info.sampling_rate_s plt.plot(np.arange(0, y_data.size)*sampling_rate_y, y_data, label='acceleration_y') plt.legend() plt.xlabel('time [s]', fontweight = 'bold') plt.ylabel('acceleration [g]', fontweight = 'bold') plt.title('Weight: {} {}, Height: {} {}'.format(ds.subjects_info.weight[s_ind].numpy()[0], ds.subjects_info.weight.info.units, ds.subjects_info.height[s_ind].numpy()[0], ds.subjects_info.height.info.units), fontweight = 'bold') plt.xlim([0, 10]) plt.grid() plt.gcf().set_size_inches(8, 5) plt.show() ``` ![](https://content.gitbook.com/content/JcUoh3WpQPB58uloyUSb/blobs/xMpgBKEFL90KXJXmMZWl/time_series_plot.png) Congrats! You just converted a time-series dataset to Deep Lake format! 🎉
